Downtime, a plants biggest fear.  A 3-Step process to overcome those fears?

Accurately - Reliably - Integrity

Do you want Handcrafted Meters Designed Specifically for You?

EPI Manufacturing meters x 7.png

We have been specifying thermal mass flowmeters for 21+ years and Eldridge Products gives you innovative, high-performance gas flowmeters for gas mass flow measurement.  EPI was the originator of the first thermal mass flow meter to utilize patented  thermal Flow Averaging Tubes (FAT™) and introduced the first all microcontroller operated flow sensor design.  In addition to developing a high temperature stack flow meter capable of reaching temperatures of 900 F, EPI introduced the Epi-Val™ with LiveZero™ In-Situ or field validation Field-Val™ firmware with EPICom interface for the Master-Touch™ & ValuMass™ lines of flow ,metering solutions. The high contrast graphical display provides you flow rate, temperature, total flow and diagnostic information. The digitally-driven circuit eliminates the traditional drift-prone analog Wheatstone bridge, improving your stability, eliminating long term drift and provides a reproducible zero flow data point.  This enables you to perform a simple single-point in-situ calibration verification traceable back to the original NIST calibration certificate.  You can perform this check while the process is running with the EPI-Val™ with LiveZero™ , downloading the results into a PDF format.

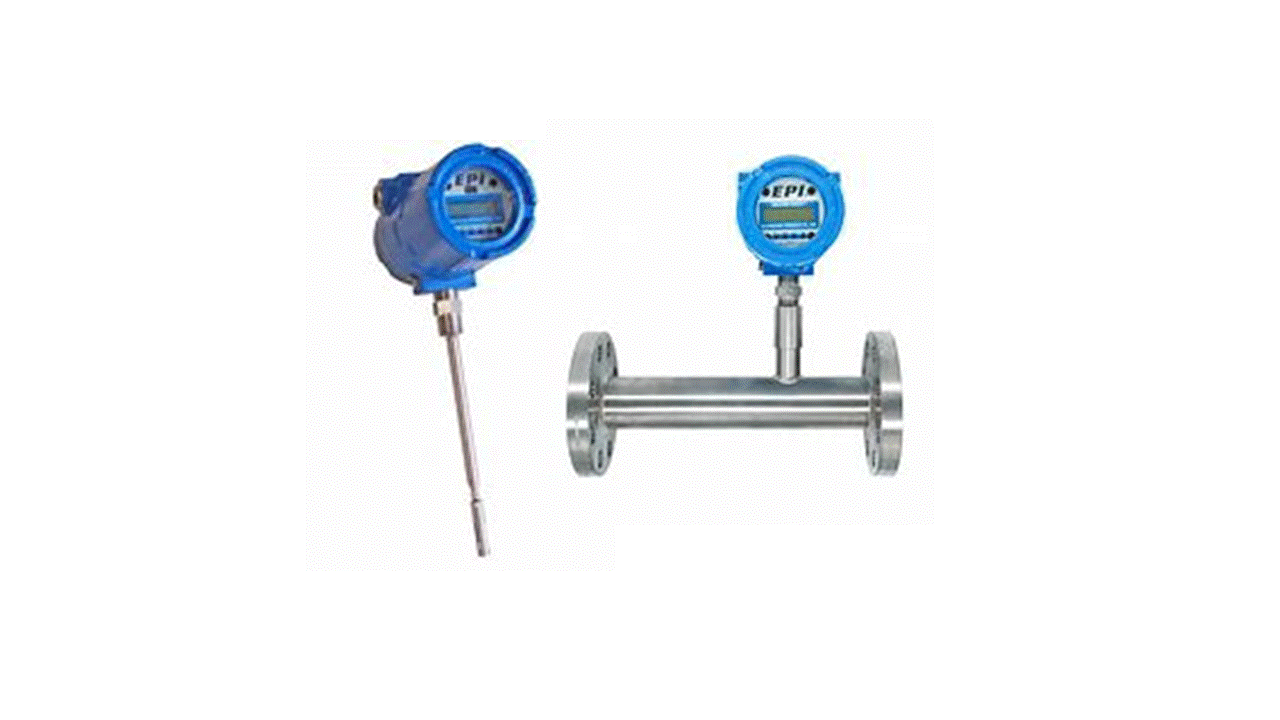

Master-Touch Series

Master-Touch Series.gif

How you benefit by using the EPI Master-Touch Flow Meter:

  • Measures direct mass flow rate/total without needing additional pressure and temperature instruments

  • Insertion & Inline probes (for 1/4" - 120" pipes/ducts) with optional retractor allows you easy removal and isolation

  • Digital Sensor  ensures you measurement stability over time

  • EPI-Val™ with  LiveZero™ allows you to perform a simple single-point in-situ calibration verification traceable back to the original NIST calibration certificate with optional Bluetooth

  • Calibration milliwatts is continuously displayed, providing you ongoing diagnostics

  • Standard 4-20 mA, pulse & Modbus RS-485 outputs, w/optional HART protocol gives you plenty of communication choices

  • EPI-Val™ with LiveZero™ Check gives you confidence meter hasn't drifted (via Field-Val™ firmware with EPICom) for reporting

  • 24 VDC in local or remote enclosures with optional 120 VAC

Master-Touch FAT Series

Fat Probe pic.png

How you benefit by using the Master-Touch FAT Flow Meters:

  • Well-suited for applications with limited straight run (3-diameters)

  • Inline Flowmeters are available from 2" - 6" spool-pieces

  • Pressure at each inlet is averaged to create the axial flow across our flow sensor for better overall measurement accuracy

  • (2) 1-Amp Event Relays with event selectable functions

  • Perfect for applications in large ducts using multi-point systems on Aeration & blower flows to basins, combustion air, flue & exhaust gas, stack gas and CEMS

  • 1-Year Warranty, Enhanced upon request* (EPI Approval)

High Purity Series

800 High Purity Meter.jpg

How you benefit by using the EPI High Purity Flow Meter:

  • Measures direct mass flow rate/total without needing additional pressure and temperature instruments

  • VCR Style Sensor for easy removal and cleaning

  • Wetted Parts:  Internal electropolished either to 10 Ra or 25 Ra surface finish

  • Standard 4-20 mA, Pulse, Modbus RS-485 with Optional HART allows you your choice of communications protocols

  • Inlet flow conditioning plate:  Opt. on 3/4" to 6" inline applications

  • Mounting:  Butt-weld ends, optional Tri-Clamp style ends, or male VCR style ends for 1/2" 3/4" or 1" tubes

Master-Touch GP Series


How you benefit by using the EPI 8600 Series GP Flow Meter:

  • General Purpose Enclosure for standard installations

  • Calibration milliwatts (mW) is continuously displayed, providing for ongoing diagnostics

  • Isolated 4-20 mA output and pulsed output of Totalized Flow

  • (2)-Relays:  1 Amp @30 VDC event selctable functions

  • 24 VDC or optional 110/220VAC in local or remote enclosures

7000 Switch Series

7000 Series switch.png

Common Features for EPI Model 7000 Flow Switch:

  • Output:  (2)-6-Amp. Relays, 24 VDC or 250 VAC (Class "A" Insulation)

  • NIST Calibration:  1% of Setpoint, Adj.Response time 1-30 seconds

  • Insertion probes (for 1" - 24" pipes); Inline flow bodies with NPT ends (1/4" - 4" pipes) and Inline, Flanges available

  • NEMA 4 Class 1 Division 1 Enclosure for Hazardous environments

  • Fluid Temperature Range:  -40 to 392 F (extended ranges avail.)

  • 24 VDC 110/220 VAC Input Power

You Have A Goal...Is Your Process Holding You Back?

Boiler and Combustion gas flow measurement

Boilers & Furnaces




Flares



compressed air flowmeter

Air Compressors & Dryers



Storage well gas flowmeters

Storage Fields
